ESD Rubber Mat 1.8mm-3mm Thickness 10e6-10e9 Ohm Surface Resistance
Dettagli:
| Luogo di origine: | Shanghai, Cina |
| Marca: | Herzesd |
| Numero di modello: | HZ-30617 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 100 |
|---|
|
Informazioni dettagliate |
|||
| Spessore: | 10,8 mm, 2 mm, 3 mm. | Materiale: | gomma nitrile |
|---|---|---|---|
| Resistenza alla superficie: | 10e6-10e9 ohm | Sotto resistenza allo strato: | 10e3-10e6 ohm |
| Resistenza al volume: | 10e7-10e10 ohm*cm | Dimensioni normali: | 1m*10m; 1,2 m * 10 m |
| Opzioni di colore: | Verde, grigio, blu | Finitura superficiale: | Matt/Glossy |
| Struttura a strati: | 2 strati (top dissipativo, fondo conduttivo) | Resistenza di saldatura: | SÌ |
| Resistenza chimica: | SÌ | Dimensioni personalizzabili: | SÌ |
| Colore personalizzabile: | SÌ | Confezione: | PE BAG |
| Numero di modello: | HZ-30617 | ||
| Evidenziare: | ESD rubber mat 1.8mm thickness,ESD rubber mat 10e6 ohm resistance,anti-static rubber mat 3mm thick |
||
Descrizione di prodotto
ESD Table Mat Antistatic Dissipative Sheet ESD Rubber Mat
HerzESD offers a comprehensive range of ESD table mats available in flexible rubber and vinyl materials, as well as rigid options. These ESD products and static control equipment serve the high-tech industry with reliable performance.
Our ESD Rubber and PVC mats feature:
- Resistance to hot solder and chemicals
- Two-layer construction - static dissipative top and black conductive bottom
- Suitable for general electronics assembly
- Available in 2-layer mat or single layer homogeneous material

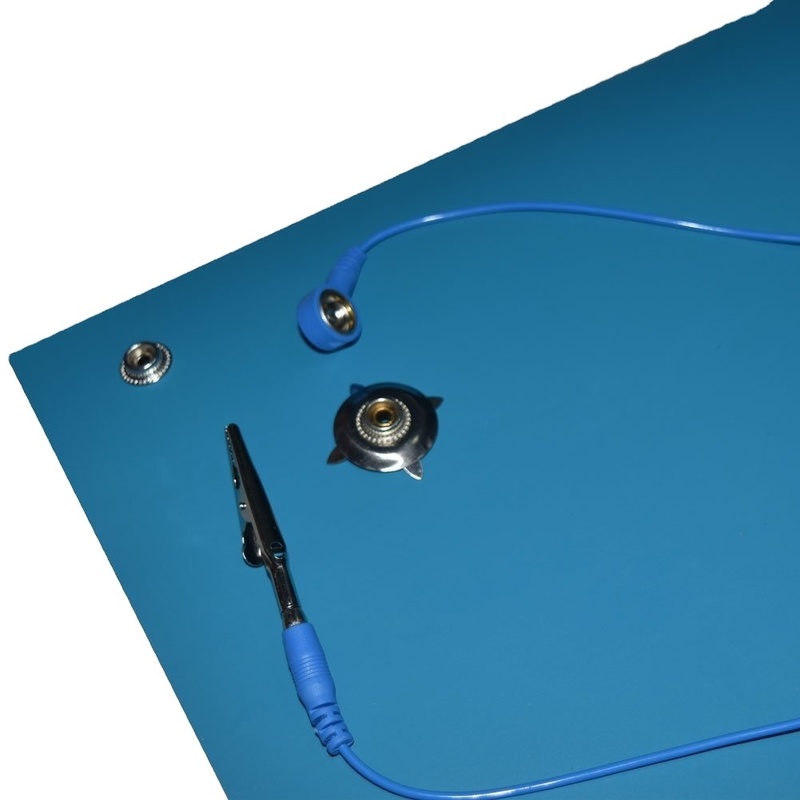

- Options include rolls or complete ESD work surface mat kits with ground snap and common point ground
- Custom sizing available for special requirements
| Model | HZ-30617 |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |
| Color | Green/Grey/Blue |
| Surface | Matt/Glossy |
| Surface Resistance | ≤10e6ohm |
| Volume Resistance | 10e7-10e10 ohm*cm |
The ESD products manufactured and supplied by Shanghai Herzesd Industrial represent the pinnacle of meticulous planning and technological excellence. Our products combine quality, innovation, and advanced technology to deliver superior static control solutions.
We continuously upgrade our products to enhance security features for various applications. Our ESD accessories are built to last with precision technology, supported by a dedicated team committed to ongoing improvement and quality assurance.
