ESD Rubber Mat 2mm 3mm Thickness 10e6-10e9 Ohm Surface Resistance
Dettagli:
| Luogo di origine: | Shanghai, Cina |
| Marca: | Herzesd |
| Numero di modello: | HZ-30617 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 100 |
|---|
|
Informazioni dettagliate |
|||
| Colore: | Verde, grigio, blu o personalizzato | Spessore: | 2 mm/3 mm |
|---|---|---|---|
| Materiale: | gomma nitrile | Resistenza alla superficie: | 10e6-10e9 ohm |
| Sotto resistenza allo strato: | 10e3-10e6 ohm | Misurare: | 1*10M; 0,6*10M; 1,2*10M per rotolo |
| Modello: | HZ-30617 | Dimensioni normali: | 1m*10m; 1,2 m * 10 m |
| Superficie: | Matt/Glossy | Resistenza al volume: | 10e7-10e10 ohm*cm |
| Strato di dissipazione statica: | Resistenza alla superficie: 107-109ohm | Carica elettrostatica di attrito: | <100V |
| Strato conduttivo: | Resistenza alla superficie: ≤106ohm | Carica elettrostatica di attrito: | <50V |
| Resistenza al volume: | 107-1010 ohm*cm | ||
| Evidenziare: | ESD rubber mat 2mm thickness,ESD rubber mat 3mm thickness,ESD rubber mat 10e6-10e9 ohm resistance |
||
Descrizione di prodotto
ESD Rubber Matting Green Grey Conductive Rubber Mat Workbench Antistatic Table Mat
HerzESD offers a comprehensive range of ESD table mats in flexible rubber and vinyl materials, as well as rigid options, designed for static control in high-tech industries. Our ESD Rubber and PVC mats provide excellent resistance to hot solder and chemicals, featuring a two-layer construction with a static dissipative top and black conductive bottom.
ESD vinyl table mats are ideal for general electronics assembly, available in both 2-layer and single-layer homogeneous materials. Both rubber and vinyl mats come in rolls or as complete ESD work surface mat kits including ground snap and common point ground. Custom sizes are available upon request.
Product Specifications
| Model | HZ-30617 |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |
| Color | Green/Grey/Blue |
| Surface | Matt/Glossy |
| Surface Resistance | ≤106ohm |
| Volume Resistance | 107-1010 ohm*cm |
Key Features
- Static dissipation layer with surface resistance of 107-109ohm
- Friction electrostatic charge <100V
- Conductive layer with surface resistance ≤106ohm
- Friction electrostatic charge <50V
- Volume resistance of 107-1010 ohm*cm

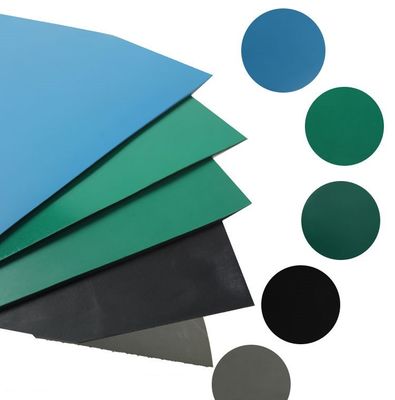

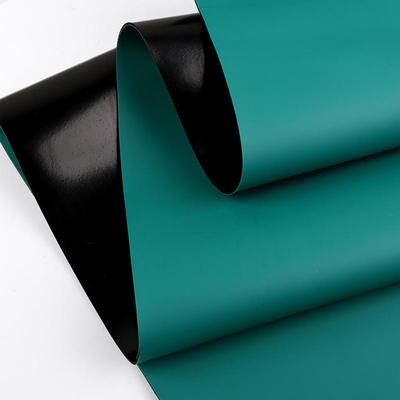

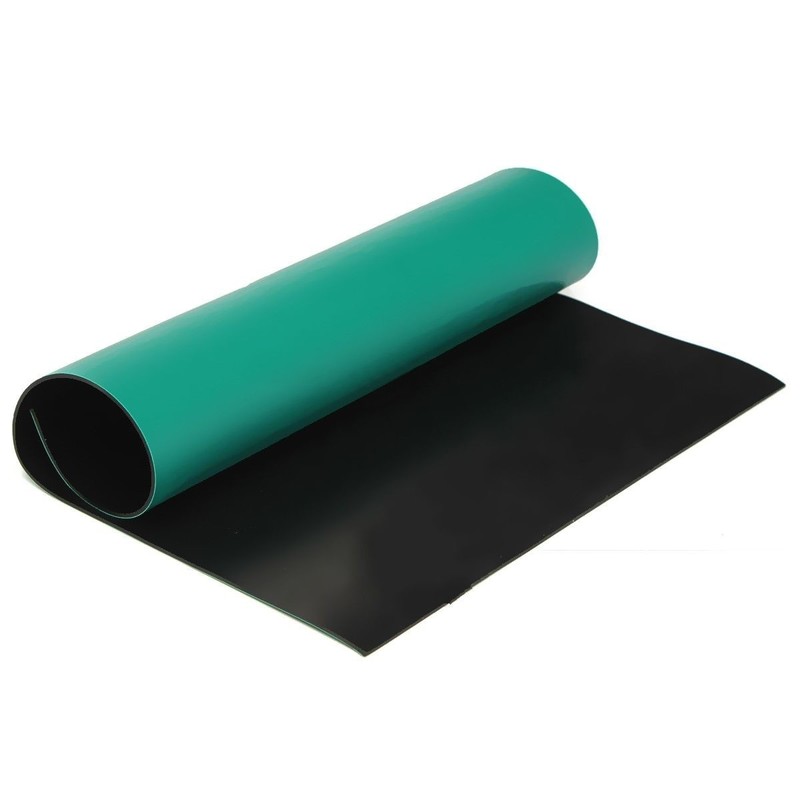

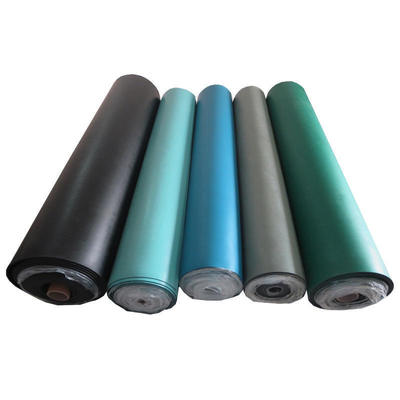

Product Images

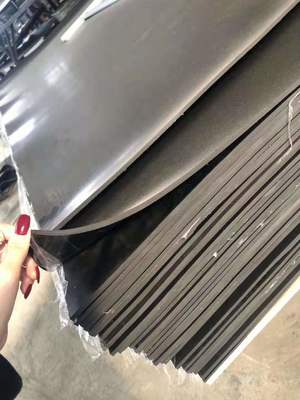

Packaging & Shipping
About HerzESD
Shanghai Herzesd Industrial manufactures ESD products through meticulous planning and technological excellence. Our products combine quality, innovation, and precision technology, with continuous upgrades to enhance security features. We maintain rigorous quality control to ensure long-lasting, reliable ESD solutions.
Frequently Asked Questions
Why you need ESD protection for your production line?
Electronic components sensitive to electrostatic discharges (ESD) can be damaged when exposed to currents or impact energy beyond permitted levels. These include semi-conducting components and thick/thin-film construction elements, often damaged through human handling. Humans can generate several thousand volts just by walking, with discharges above 2000-3000V being potentially harmful to sensitive components.
Implementing ESD-safe procedures according to IEC 61340 or ANSI S2020 standards is essential for quality assurance. Beyond our anti-static workstations, we offer a comprehensive range of ESD solutions including chairs, cleaning products, clothing, footwear, flooring, packaging, grounding materials, storage systems, test equipment, and training services.
Why choose HerzESD?
HerzESD is committed to providing accurate information and optimal ESD solutions, even when it means challenging established market opinions. We pride ourselves on delivering only correct ESD solutions through reliable manufacturing partnerships.
As a solid industry partner, HerzESD collaborates with international manufacturers to continuously improve static electricity control solutions, maintaining vigilance for new technologies and methodologies in ESD protection.
