ESD Foam Sheet Antistatic Foam with 80-100Kg/m3 Density and 10e3-10e9 Ω.cm Resistivity for Electronics Packing
Dettagli:
| Luogo di origine: | Zhejiang, Cina |
| Marca: | Herzesd |
| Numero di modello: | HZ-1204 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 100 |
|---|
|
Informazioni dettagliate |
|||
| Materiale: | EVA, EVA/PU/IXPE | Tipo: | Schiuma |
|---|---|---|---|
| Colore: | Nero | Densità: | 80-100 kg/m3 |
| Resistività al volume: | 10e3-10e6 Ω.cm, 10e6-10e9 Ω.cm | Modello: | HZ-1204A, HZ-1204B |
| Proprietà conduttiva: | Antistatico | Personalizzabile: | SÌ |
| Progettazione di progettazione: | Disponibile | Resistenza alla temperatura: | Personalizzabile |
| Personalizzazione delle dimensioni: | Disponibile | Personalizzazione della densità: | Disponibile |
| Personalizzazione del materiale: | Disponibile | Ritardante del fuoco: | SÌ |
| Eco-friendly: | SÌ | ||
| Evidenziare: | 80-100Kg/m3 Density ESD Foam Sheet,10e3-10e6 Ω.cm Resistivity Antistatic Foam,10e6-10e9 Ω.cm Resistivity ESD Packing Foam |
||

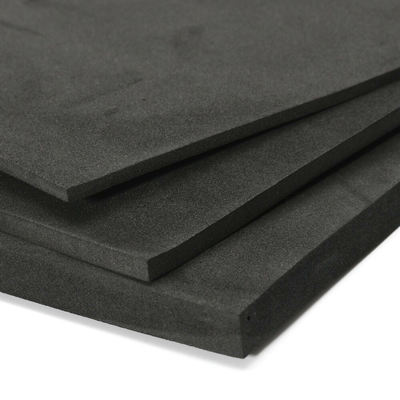

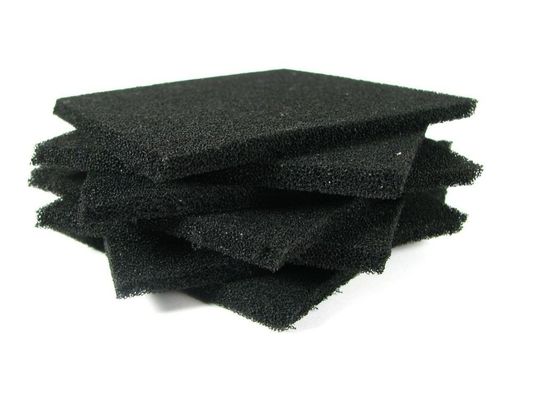

Descrizione di prodotto
ESD Packing Foam Antistatic EVA PU IXPE Anti-Shock Foam Sheet Fire Retardant Packing Material
| Item | Technical Data |
|---|---|
| Conductive | Antistatic |
| Model | HZ-1204A | HZ-1204B |
| Color | Black |
| Density | 80-100Kg/m³ |
| Volume Resistivity | 10e3--10e6 ohm.cm | 10e6--10e9ohm.cm |

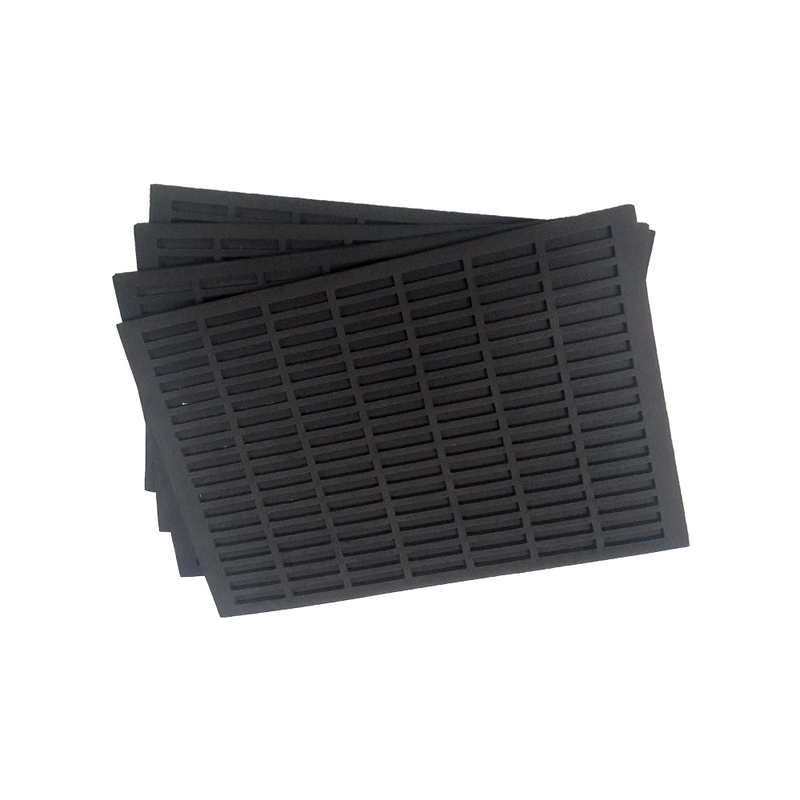

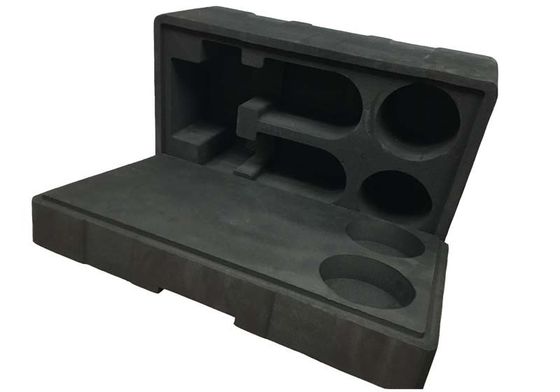

Our ESD foams come in a variety of sizes and densities to suit your specific needs. Whether you need foam sheets for lining electronic packaging, or custom-cut foam inserts for organizing and transporting components, we can provide you with the perfect solution.
ESD foams are easy to work with and can be cut, shaped, and molded to fit any application. They are also lightweight and flexible, making them easy to handle and transport.
We offer material, density, size, and temperature resistance customization services.
We offer material, density, size, and temperature resistance customization services.
Why You Need ESD Protection For Your Production Line?
Electronic components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements which can be destroyed or damaged if the permitted levels of current or impact energy are exceeded. As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements.
This type of construction element is mostly damaged through human mishandling. A human-being can charge several thousands of volts just by walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level' of many ESD components.
Before buying or implementing ESD safe products one needs implementing an ESD safe procedure according to the ESD standards IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.
Why Choose HerzESD?
HerzESD strives to serve our customers better by offering correct and clear explanatory answers. We try to do so, even when informing our customers better means contradicting a more established but sometimes flawed opinions on the market.
At HerzESD we pride ourselves on ensuring the only correct ESD solution. To continue this vision we need reliable ESD manufacturers and suppliers on which we can always count. HerzESD is a solid partner and together with our international partners we stay strong and vigilant in regards to possible improvements or new solutions in tackling and controlling static electricity.
