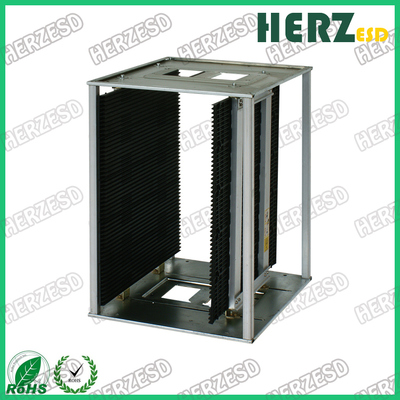

ESD Magazine Rack SMT PCB Turnover Racks
Dettagli:
| Luogo di origine: | CN |
| Marca: | Herzesd |
| Numero di modello: | HZ-2608 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 5 |
|---|---|
| Prezzo: | USD 35-50/ set |
| Tempi di consegna: | 5-7 giorni |
|
Informazioni dettagliate |
|||
| Regoli il tipo: | Pista dell'ingranaggio della vite | Resistenza alle alte temperature: | 80℃, 120℃ e 200℃ qui sopra sono disponibili |
|---|---|---|---|
| Utilizzo: | Convertitore PCB | Materiale: | plastica+metallo |
| Misurare: | 535*460*570 mm | Slot: | 50 |
Descrizione di prodotto
Anti-Static PCB Magazine for Automated Assembly
The anti-static magazine rack is made from high-quality ESD engineering plastics and metal components coated with ESD-safe materials. Its surface resistance is precisely controlled between 10⁶–10¹¹ Ω, allowing static electricity to be discharged instantly and safely. Even in complex environments, it provides stable, long-lasting protection for electronic components, precision instruments, and other static-sensitive products, preventing damage or performance degradation.
Size Chart:
| Model | Outer size(mm) | PCB plate size(mm) | Base material | Adjust type | Temp. | Slots | Weight (KG) |
| HZ-2601 | 355*315*580 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 50 | 5 |
| HZ-2602 | 355*315*305 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 25 | 3.4 |
| HZ-2603 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 5 |
| HZ-2604 | 355*320*563 | 355* (50-250) | Plastic | Gear track | 80℃/120℃ | 50 | 4.5 |
| HZ-2605 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃ | 50 | 6.5 |
| HZ-2606 | 355*320*563 | 355* (50-250) | Metal | Gear track | 80℃/120℃ | 50 | 6 |
| HZ-2607 | 460*400*563 | 460*(50-330) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 8 |
| HZ-2608 | 535*460*570 | 535*(50-390) | Metal | Screw / gear track | 80℃/120℃ | 50 | 10.5 |
| HZ-2609 | 535*530*570 | 535*(120-460) | Metal | Screw / gear track | 80℃/120℃ | 50 | 12 |
| HZ-2610 | 630*530*570 | 630*(50-460) | Metal | Screw adjust. | 80℃ | 50 | 13 |
| HZ-2611 | 355*320*560 | 355* (50-250) | Plastic | Chain adjust. | 80℃ | 50 | 6 |
| HZ-2612 | 355*320*560 | 355*(80-250) | Metal | Screw / gear track | 550℃ | 50 | 6.8 |
| HZ-2613 | 400*320*563 | 400*(50-250) | Metal | Screw / gear track | 80℃ | 50 | 6 |
Product Description: SMT ESD PCB Magazine Rack
EQUIPMENT AND PRODUCTS FOR THE ESD PRODUCTION LINE
PCB Magazine
ESD PCB Magazine Rack
SMT PCB Magazine Rack
SMT ESD PCB Magazine
ESD SMT PCB Magazine Racks:
A PCB Magazine or PCB Rack is made of volume conductive polypropyleneand metalwhich is used to transport the PCB boards for automated assembly lines
1.The SMT magazine rack is designed for PCBs manufacture, assembly, storage and transfer.
2.Adjustable through screws,gear adjustment.
3.Common type (60°C) and heat-resistance type(120°C ,160~200°C) are available.
4.Surface resistance: 104~106 ohm.
5.Base: P-Conductive PS, M-Zincification Iron
6.Adjustment: G-Gear track adjustment, S-Screw adjustment
7.Max tolerant temperature: 60°C,120°C,160~200°C different material 8.PCB slots:The number of the SMT magazine rack Can accommodate PCBs
